HV Electricity Overhead Distribution Line: Calculation of a_g, a_w, a_r,angle and Distance Values Based On x, y, z Coordinate Values in Pigeon Iron Pole Projects

HV ELECTRICITY OVERHEAD DISTRIBUTION LINE

STATE CHANGE EQUATION

Fieldwork Conductor Sag Tension Calculation

Project Conductor Sag Table
State Change Equation(T_n,a_r,P_r,P_b,⁰C)

Calculation of ag, aw, ar angle Table

Up Lift Control

Section 4

Kısım 3
Kısım 4

BÖLÜM 2
Kısım 1
Kısım 2
Kısım 3
Kısım 4

Kısım 3
Kısım 4
Kısım 5
Kısım 6

.....Click here for the new program that draws ENH profiles...

Excel FileDownload. / Excel File Upload.

Coordinate : Manual Excel Project Name : (Yahyay,Tuzcular....)

Pole Type :Steel Concrete
Ice Load Zone
H₁ Tension (kg)
W₁ Conductor Weight (kg/m)

Pole Image	Pole No	Cable	X_Coordinate	Y_Coordinate	Z_Coordinate	Pole	Pole Type	Suspension Tension	Pole Distance	Total Distance	Span					Pole Length	Height Differ.	Project Angle	Pole Angle
											a_w	a_g1,2 a_gprj a_g			a_r
	1							F	0	0	70,98()-1		59,3	336		16	0		24
		Cable							141,97			59,3			141,97
	2							T S		141,97	154,8()-2	82,67	50,63	336		20	-1,85	0,01	24
		Cable							167,63			-32,04			145,19
	3							T S		309,6	124,65(234,84)-3	199,67	197,5	406,25		23	23,16	0,01	10
		Cable							81,67			-2,17			145,19
	4							T S		391,27	148,39()-4	83,84	194,3	336		20	6,55	20,06	24
		Cable							215,11			110,46			215,11
	5							T S		606,38	148,02()-5	104,65	431,22	598		22	-2,81	0	24
		Cable							80,94			326,57			80,94
	6							T S		687,32	153,51()-6	-245,63	-93,7	598		20	-28	15,25	24
		Cable							226,09			151,93			226,09
	7							T S		913,41	225,02()-7	74,16	147,88	485		14	-5,39	23,36	55
		Cable							223,96			73,72			223,96
	8							T S		1137,37	205,82()-8	150,24	234,62	598		20	5,1	4	24
		Cable							187,67			84,38			187,67
	9							T S		1325,04	197,04()-9	103,29	188,99	800		20	2,3	50,53	58
		Cable							206,4			85,7			206,4
	10							T S		1531,44	193,98()-10	120,7	225,04	485		14	10,68	22,1	55
		Cable							181,55			104,34			181,55
	11							T S		1712,99	144,67()-11	77,21	-126,36	485		22	-11,19	34,68	55
		Cable							107,78			-203,57			107,78
	12							T S		1820,77	113,26()-12	311,35	567,96	598		22	35,95	0	24
		Cable							118,73			256,61			118,73
	13							T S		1939,5	83,66()-13	-137,88	95,03	336		20	-28,34	15,61	24
		Cable							48,58			232,91			48,58
	14							T S		1988,08	116,79()-14	-184,33	-104,47	336		14	-7,13	53,61	24
		Cable							185			79,86			236,55
	15							T S		2173,08	175(287)-15	79,86	154,05	560		19	-0,97	0	10
		Cable							165			105,14			236,55
	16							T S		2338,08	229(369,84)-16	48,91	118,42	675,81		21	5,18	0,01	10
		Cable							293,01			116,09			236,55
	17							F		2631,09	146,5()-17	2,33	311,35	336		14	60,73		24
												290,68

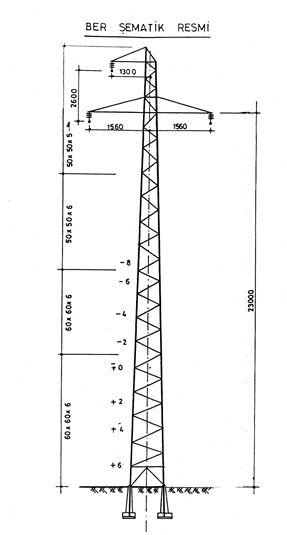

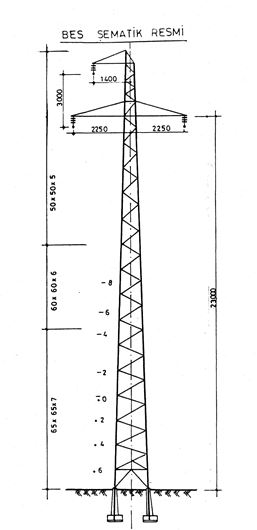

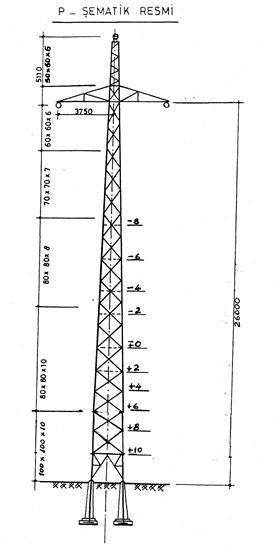

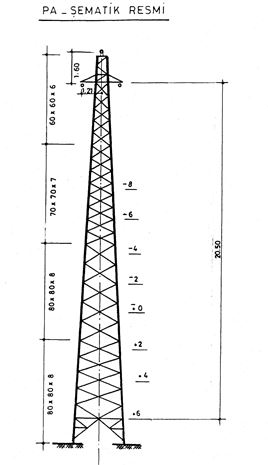

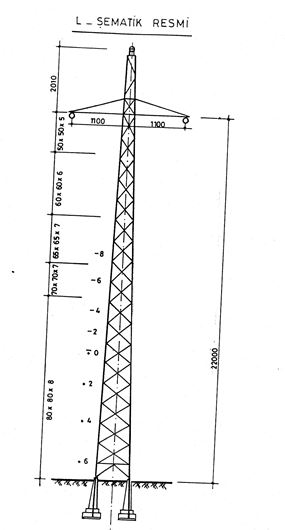

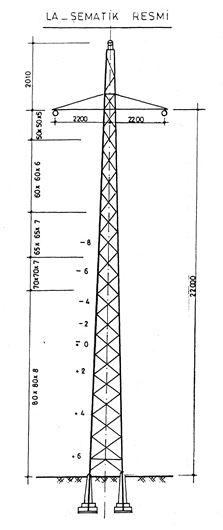

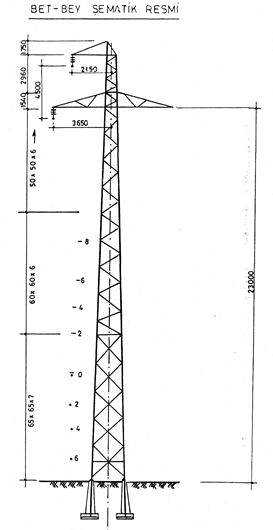

BER , BES, BET,BEY Carrier Pole(Suspension Pole). K, L, LA, PA, R, P End pole(Tension Pole).

*The a_g1 and a_g2 Weight Span of the poles are calculated. Thus by calculating the Sag notch points correctly in the project drawings, the distances to approach the obstacles on the field will be seen with the Sag Template, and the pole lengths can be calculated accurately. In addition, the total ag (total a_gprj value in the project) value of the poles is calculated, and controls are provided by giving the Weight Span (a_g) in which the poles can be used. The Weight Span in which the poles can be used are recalculated depending on the angle of the carrier(suspension) poles.
*The value of the Rulings Span (a_r) between the stop poles (Tension, End Pole) is calculated.
*The a_w Wind Span of the poles(suspension, carrier pole) is calculated, and the Wind Span values that the carrier poles(suspension)can use depending on the angle are calculated and given in parentheses.
*The deviation angle of the pole is calculated. Angle values at which poles can be used are given Pole Angle Column.
*The elevation difference is calculated.
*The distances between the poles and the distance of the poles to the starting point of the line are calculated.
*When you hover the mouse over the pole images in the program, the image enlarges, which will make it easier to control pole lengths in the field.
*The calculations are renewed by selecting the Ice Load Zone and Pole Types. The program has been activated for pigeon iron poles.
